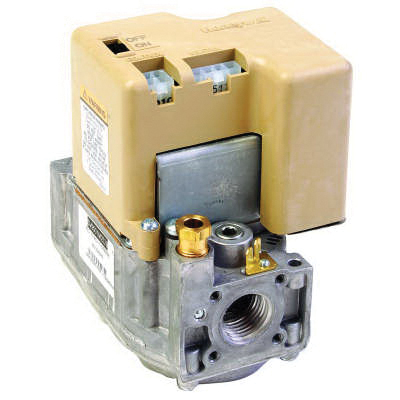

Honeywell SV9501M2528/U

Honeywell SmartValve SV9501M2528/U Gas Valve, 1/2 in Nominal, FNPT Connection, Natural Gas, LP Gas Fuel

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • Item #: 52946
  • Rebate Amount:
  • MPN: SV9501M2528/U
  • UPC: 85267791090
  • Qty. Interval: 1
  • Availability: Login for Availability

The SmartValve system controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. The specific application of the SmartValve system is the responsibility of the appliance manufacturer. They are directly compatible with the Q3450 or Q3480 Intermittent Pilot burners used with the original controls on the appliance.

Honeywell SmartValve Gas Valve, 1/2 in Nominal, FNPT Connection, 0.5 lb/sq-in Pressure, Intermittent Hot Surface Pilot Ignition, 24 VAC at 50/60 Hz, 20 - 200 cu-ft/hr, 150 cu-ft/hr at 1 in Pressure Drop Nominal, Natural Gas, LP Gas Fuel, 1/8 in NPT Pressure Tap Hose Connection, -40 to 175 deg F Ambient, 4.1 in L x 3.2 in W x 4.9 in H

Dimensions      :      4.1 in L x 3.2 in W x 4.9 in H
Hose Connection Type      :      1/8 in NPT Pressure Tap
Pressure Rating      :      0.5 lb/sq-in
Temperature Rating      :      -40 to 175 deg F Ambient
Voltage Rating      :      24 VAC at 50/60 Hz
Nominal Size      :      1/2 in
Connection Type      :      FNPT
Nominal Capacity      :      20 - 200 cu-ft/hr, 150 cu-ft/hr at 1 in Pressure Drop
Fuel Type      :      Natural Gas, LP Gas
Ignition Type      :      Intermittent Hot Surface Pilot
  • Ignition sequence includes timed trial for ignition
  • Includes natural to LP conversion kit, extension harness
  • 0 - 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting
  • Intermittent pilot ignition sequence
  • HSI flame sense
  • Pilot ignition source
  • Continuous retry ignition trials to lockout
  • 90 sec ignition trial time
  • Universal tradeline value
  • 1.6 sec at 3 uA flame failure response time
  • Straight through configuration
