Mitsubishi Electric MLZ-KY06NA-U1

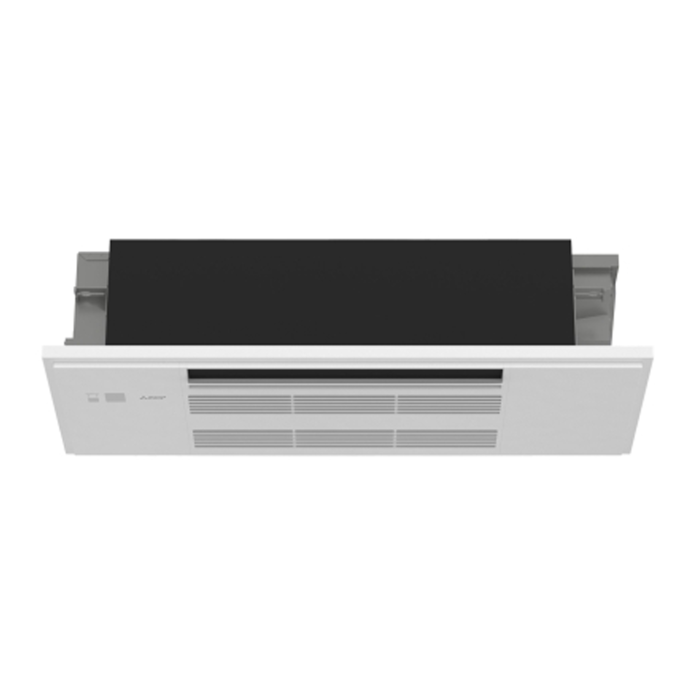

Mitsubishi Electric MLZ-KY06NA-U1 0.5T One-Way EZ Fit Ceiling Cassette
- Manufacturers: Mitsubishi Electric
- Brand Name: Mitsubishi Electric
- Item #: 61214
- Rebate Amount:
- MPN: MLZ-KY06NA-U1
- Qty. Interval: 1
- Availability: Login for Availability
Mitsubishi Electric MLZ-KY06NA-U1 0.5T One-Way EZ Fit Ceiling Cassette. Does not include grille. Designed to fit between I-joist spacing. 6,000 Btu/Hr. M-Series. 208/230 VAC. 1 Phase. UL 60335-2-40 Compliant.
| Model | : | MLZ-KY06NA-U1 |
| BTU Rating | : | 6000 Btu/Hr |
| Tonnage | : | 0.5 Ton |
| SEER Rating | : | 19.2 |
| Liquid Line Size | : | 1/4 in. |
| Suction Line Size | : | 3/8 in. |
• Designed to fit between I-joist spacing
• Stylish, square design panel
• Built-in condensate lift mechanism (19.6”)
• Serviceable from the bottom (electrical and flare connections)
• Adjustable fan speeds and vane directions
• Washable antibacterial and deodorizing filter
• Multiple control options available:
• Hand-held Remote Controller (provided with unit)
• kumo cloud® smart device app for remote access
• Third-party interface options
• Wired or wireless controllers
• Pocket inside the access panel for kumo cloud® Wireless Interface
• UL 60335-2-40 Compliant
MLZ-KY06NA-U1 Installation Instructions
