Trane NTXSKH15A112AA

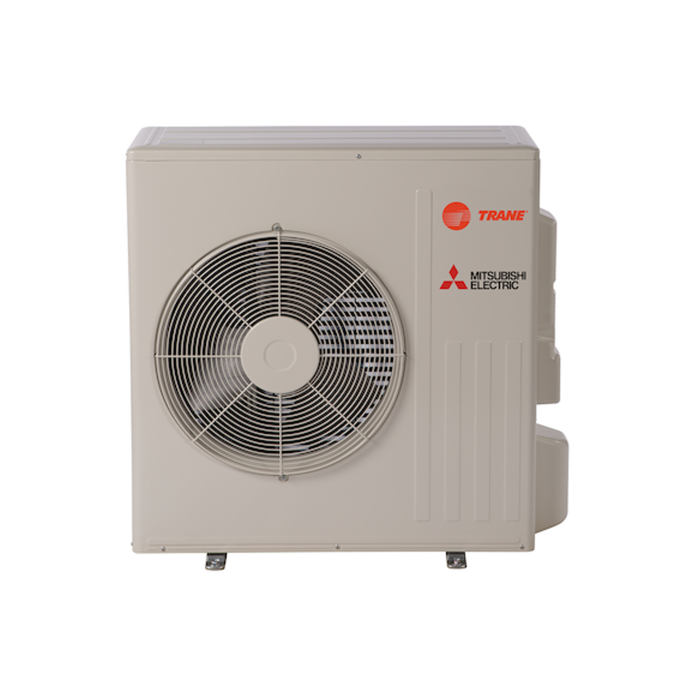

TRANE® NTXSKH15A112AA Single-Zone Outdoor Unit, 208/230 VAC, 16 A, 15000 Btu/hr BTU, 1 ph, R410A Refrigerant

  • Manufacturers: Trane
  • Brand Name: Trane
  • Item #: 52682
  • Rebate Amount:
  • MPN: NTXSKH15A112AA
  • Qty. Interval: 1
  • Availability: Login for Availability

    • Mueller 40820250B6
    • Duraguard 1/4" x 1/2" Minisplit Line Set w. Plain Ends 25'

    • Item #: 46247
    • MPN: 40820250B6
    • Diversitech DDS-60...
    • DiversiTech® DDS-60U Non-Fusible Disconnect Switch, 240 VAC, 60 A

    • Item #: 19813
    • MPN: DDS-60U
    • UPC: 9524708242
    • Diversitech 6-12-6...
    • DiversiTech® 6-12-6NM Wiring Convenience Kit, 3-Conductor, 10 AWG Wire, 6 ft L

    • Item #: 299
    • MPN: 6-12-6NM
    • UPC: 9524725877
    • Mueller 40820500B6
    • Duraguard 1/4" x 1/2" Minisplit Line Set w. Plain Ends 50'

    • Item #: 42336
    • MPN: 40820500B6
    • RLS LLC 3291040000...
    • RLS® 3291040000111 Adapter, 1/4 in Nominal, Press x Flare Connection, Copper

    • Item #: 50818
    • MPN: 3291040000111
    • UPC: 687472642893
    • RLS LLC 3291080000...
    • RLS® 3291080000111 Adapter, 1/2 in Nominal, Press x Flare Connection, Copper

    • Item #: 50817
    • MPN: 3291080000111
    • UPC: 687472598510
    • Diversitech QSMS12...
    • Quick-Sling® QSMS1201-SS Mini Split Stand, Stainless Steel, Powder Coated

    • Item #: 29217
    • MPN: QSMS1201-SS
    • UPC: 095247164868
    • Diversitech EL1838...
    • DiversiTech® E-Lite EL1838-3 Equipment Pad, 18 in L, 38 in W, 3 in H, Polypropylene, Gray

    • Item #: 16927
    • MPN: EL1838-3
    • UPC: 095247093373
    • RectorSeal 87762
    • RectorSeal® Slimduct 87762 Riser, Polymer, PVC, Ivory

    • Item #: 4555
    • MPN: 87762
    • UPC: 021449877626
    • RectorSeal 87735
    • RectorSeal® 87735 Wall Bracket, Steel, Powder-Coated

    • Item #: 11495
    • MPN: 87735
    • Diversitech QSMS18...
    • DiversiTech® QSMS1801 Mini-Split Stand, Steel, Powder-Coated, 1 ft 4-1/16 in L x 3 ft 1-...

    • Item #: 25342
    • MPN: QSMS1801
    • UPC: 095247157785
    • Diversitech EL3244...
    • DiversiTech® EL3244-3 E-Lite Equipment Pad, 32 in L, 44 in W, 3 in Thick, Plastic

    • Item #: 15896
    • MPN: EL3244-3
    • UPC: 0095247077014
    • RectorSeal 87734
    • RectorSeal® 87734 Wall Condenser Bracket, Stainless Steel, Powder-Coated

    • Item #: 25887
    • MPN: 87734
    • UPC: 21449877343
    • Diversitech QSMS18...
    • Quick-Sling® QSMS1801-SS Mini Split Stand, Stainless Steel, Powder Coated

    • Item #: 29222
    • MPN: QSMS1801-SS
    • UPC: 095247164875

Trane®/Mitsubishi Electric NV Series ductless solutions are incredibly versatile options that bring reliable, efficient heating and cooling to small buildings, office spaces, restaurants and retail shops.

TRANE® Single-Zone Outdoor Unit, 208/230 VAC, 16 A, 1120/1410/1300 W Power, 60 Hz Frequency, 1 ph, 15000 Btu/hr, 1653/1730 cfm, 13.5 EER, 21.8 SEER, 11.6 HSPF, Flared Connection, DC INVERTER-Driven Twin Rotary Compressor, R410A Refrigerant, 20 A Fuse, 1.25 ton, Ductless Vent, Ducted or Ductless, 55 dB Sound Level, 33-1/16 in W x 13 in D x 34-5/8 in H Dimensions

Model      :      NTXSKH15A112AA
BTU Rating      :      15000 Btu/Hr
Tonnage      :      1.25 Ton
SEER Rating      :      17.7
HSPF Rating      :      9.0
Hyper Heat/LGRED      :      Non-Hyper Heat
Zoning      :      Single Zone
Liquid Line Size      :      1/4 in.
Suction Line Size      :      1/2 in.
  • Powerful performance
  • Improved air quality
  • Energy savings to keep total cost of ownership down
  • Easy Installation keeps projects on time and on budget
  • Inverter-driven compressors maximizes savings by using energy for an area only when needed
  • Hyper-heating Inverter heat pumps work in even extreme climates (down to -13 deg F)
  • Superior energy efficiency with SEER ratings up to 33.1
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Trane_NTXSKH09A112AA_Catalog.pdf
